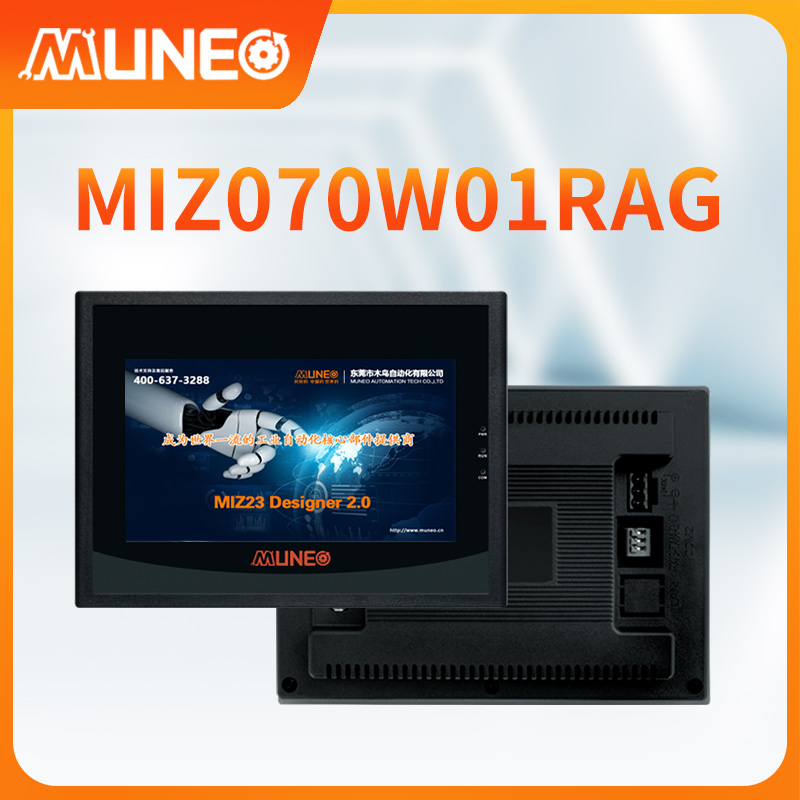

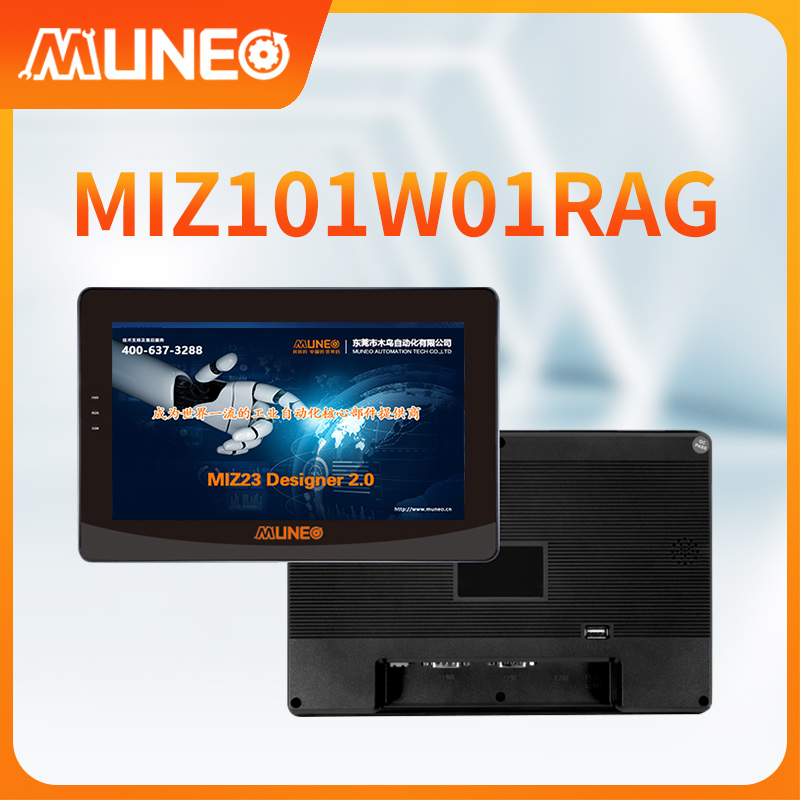

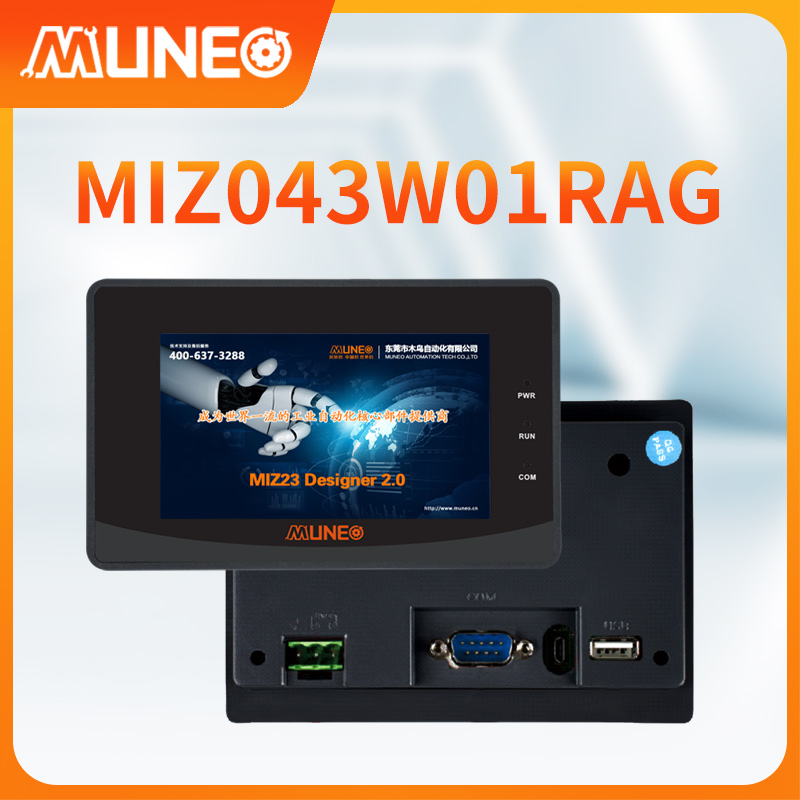

| Model Items | MIZ035W01RAWDMIZ035W01RABD | MIZ043W01RAG | MIZ043W01RPGAMIZ043WO2RPGD | MIZ070W01RAG | MIZ101W01RAG |
| Display Screen | 3.5 inches | 4.3 inches | 4.3 inches | 7 inches | 10.1 inches |
| Resolution (Px) | 320×240 | 480×272 | 480×272 | 800×480 | 1024×600 |
| Color Depth | 260,000 | 260,000 | 260,000 | 260,000 | 260,000 |
| LCD Brightness | 300 cd/m² | 300 cd/m² | 300 cd/m² | 400 cd/m² | 250 cd/m² |
| Backlight | LED
|
| LED Lifespan | 20,000 hours | 20,000 hours | 20,000 hours | 20,000 hours | 20,000 hours |
| Touchscreen | 4-wire Industrial Resistive Touchscreen (Surface Hardness 4H) | 4-wire Industrial Resistive Touchscreen (Surface Hardness 4H) Capacitive Touchscreen Supported |
| CPU | 32-bit 600MHz ARM9
|
| Memory | 128 Mbyte SPI Nand FLASH | W01: 128 Mbyte SPI Nand FLASH W02: 16Mbyte SPI NOR FLASH | 128 Mbyte SPI Nand FLASH |
| RTC | Built-in Real-Time Clock
|
| Ethernet | None
|
| Power Failure Data Preservation | Supported | Supported | W01: Supported W02: Unsupported | Supported | Supported |
| USB Ports | 1 USB 2.0 Device Port
| 1 USB 2.0 Device Port, 1 USB 2.0 HOST Port | USB1: TYPE-C (Download), USB2: TYPE-A (USB Drive) |
| Program Download Method | USB Download | USB, USB Drive, SD Card Download | USB, SD Card Download | USB, USB Drive, SD Card Download | USB, USB Drive, SD Card Download |
| USB Drive Support | Unsupported | Supported | Unsupported | Supported | Supported |
| Communication Ports | Port 1: RS232/RS485, Port 2: RS485 | Port 1: RS232, RS485, RS422 (Selectable), Port 2: RS232, RS485 (Optional) | 1 Port, Port 1: RS232/RS485 (Selectable) | Port 1: RS232, RS485, RS422 (Selectable), Port 2: RS232, RS485 (Optional) | Port 1: RS232, RS485, RS422 (Selectable), Port 2: RS232, RS485 (Optional) |
| Rated Power | <2W | <2W | <2W | <3.5W | <3.5W |
| Rated Voltage | DC10~30V
|
| Power Protection | ±2KV Lightning Surge Protection
|
| Power Loss Tolerance | <5ms
|
| CE & RoHS Compliance | Conforms to EN61000-6-2:2005, EN61000-6-4:2007 Standards
|
| EMI/EMC Protection | Lightning Surge ±2KV, Burst ±4KV; Air ESD ±10KV
| Lightning Surge ±2KV, Burst ±4KV; Contact ESD ±8KV, Air ESD ±15KV
|
| Electrostatic contact discharge ± 4KV | Electrostatic contact discharge ± 8KV |
| Operating Temperature | -10~50°C
|
| Storage Temperature | -30~70°C
|
| Humidity | 10~90%RH (Non-condensing)
|
| Shock Resistance | 10~25Hz (X, Y, Z directions, 2g/30 minutes)
|
| Cooling Method | Natural Air Cooling
|
| IP Rating | Front Panel: IP65 (with flat panel cabinet installation), Rear Case: IP20
|
| Active Display Area | 70.08mm × 52.56mm | 95mm × 54mm | 95mm × 54mm | 154.1mm × 85.9mm | 225mm × 128mm |
| Dimensions (WxHxD) | 86mm × 86mm × 25.2mm | 140mm × 98mm × 26mm | 38mm × 86mm × 2 | 203mm×149mmx38mm | 267mmx180mmx34mm |
| Hole size (AxB) | 68mmx68mm | 130mmx78mm | 130mmx78mm | 192mmx138mm | 255mmx168mm |
| Net weight of the whole machine | 149g | 149g | 168g | 400g | 745g |
