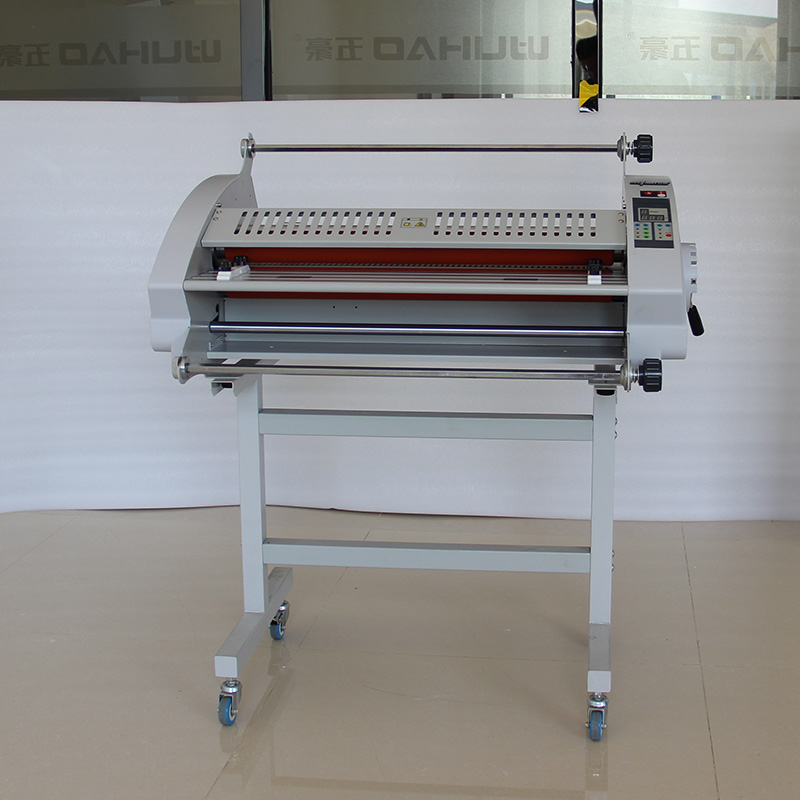

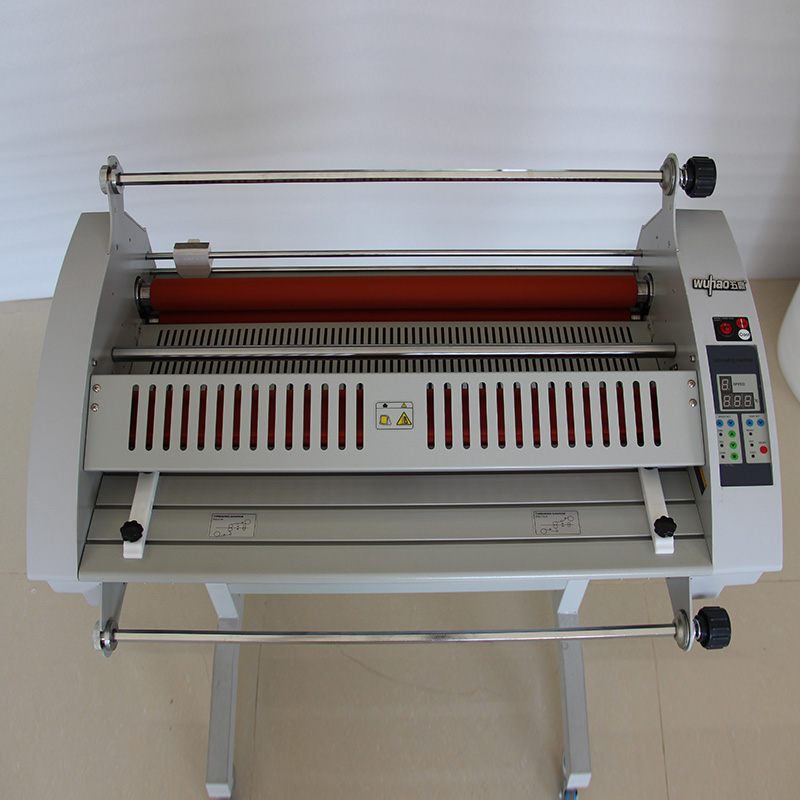

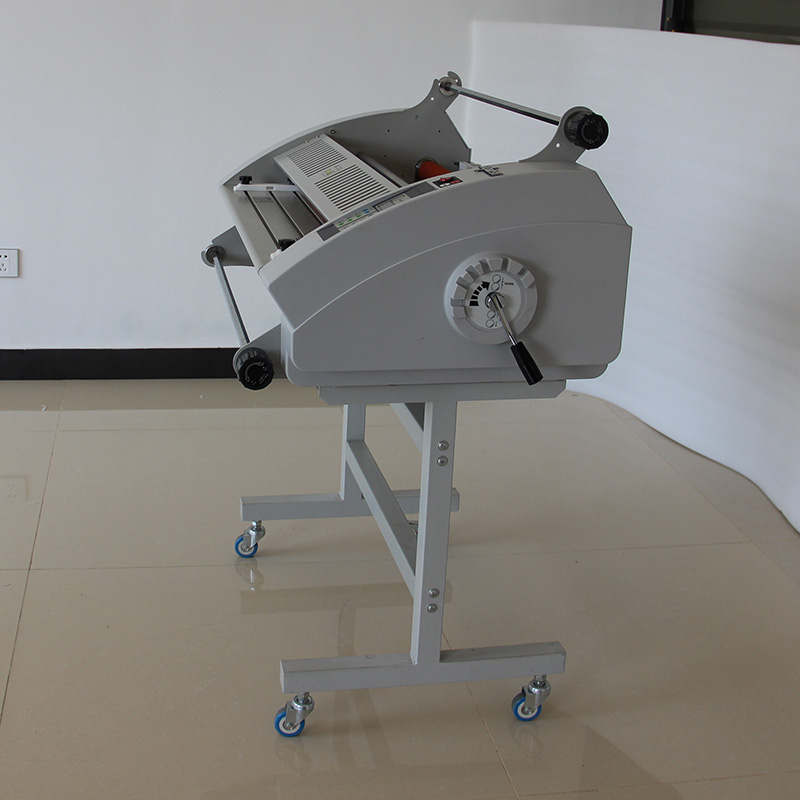

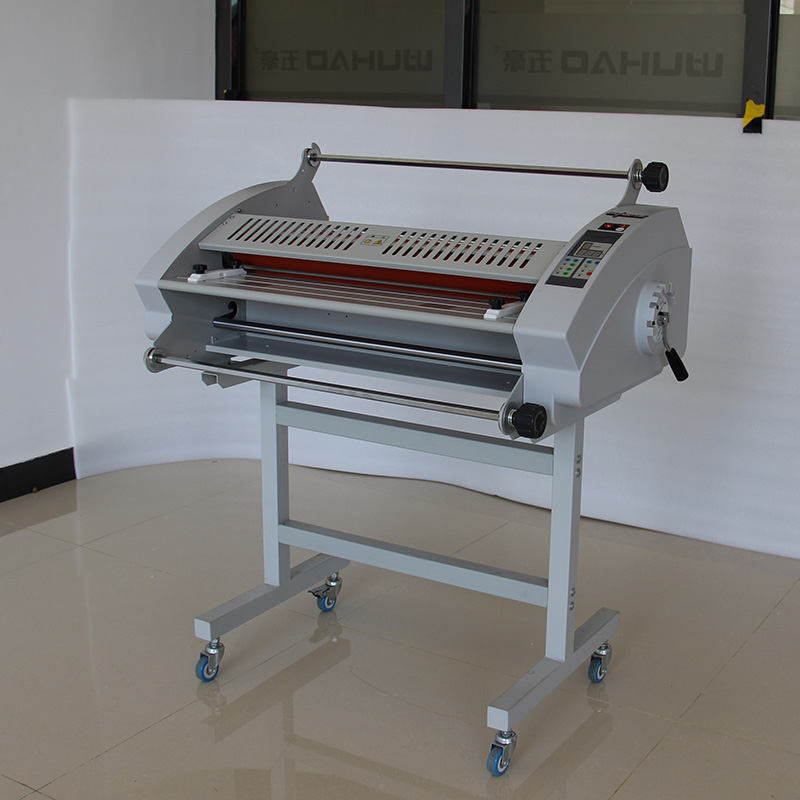

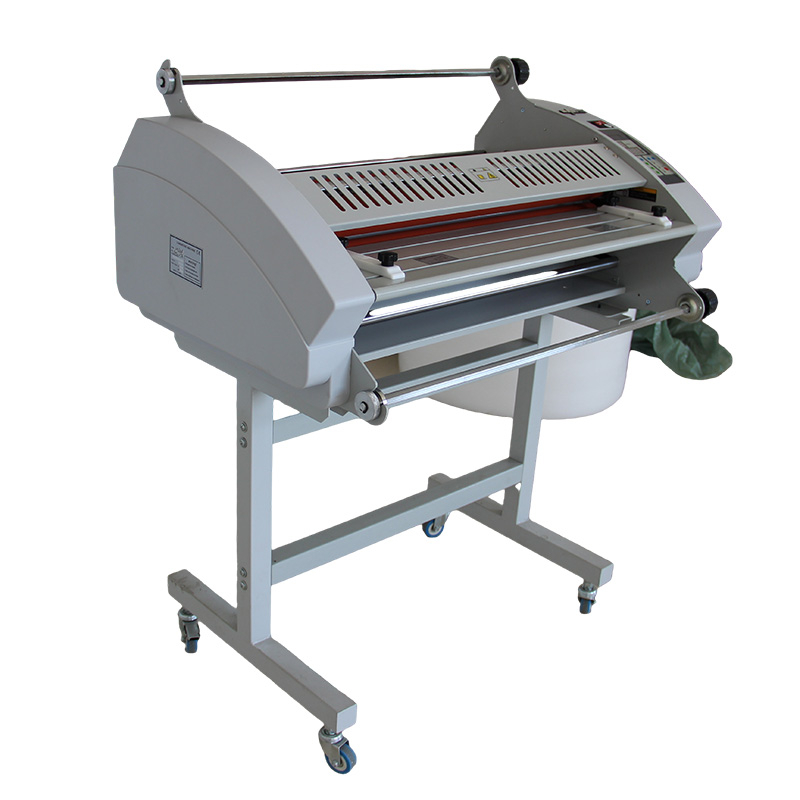

EQ-650A Laminating Machine

5 0 Reviews

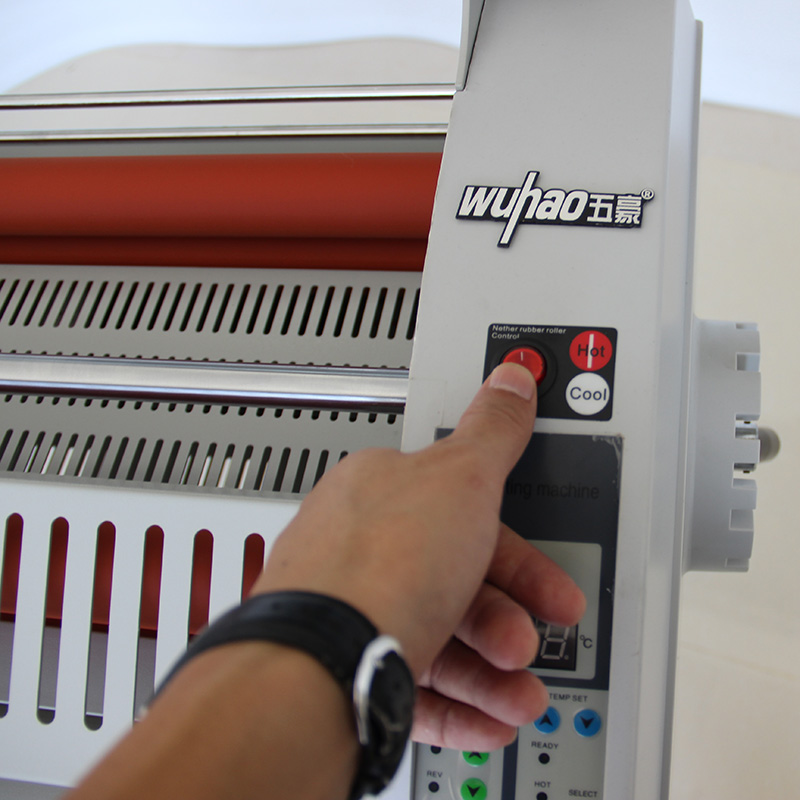

Touch the operation button, fashionable and convenient
Laminated, cold installation dual function, one machine dual use
Adjustable pressure adjustment design, suitable for all kinds of paper
With cutting blade

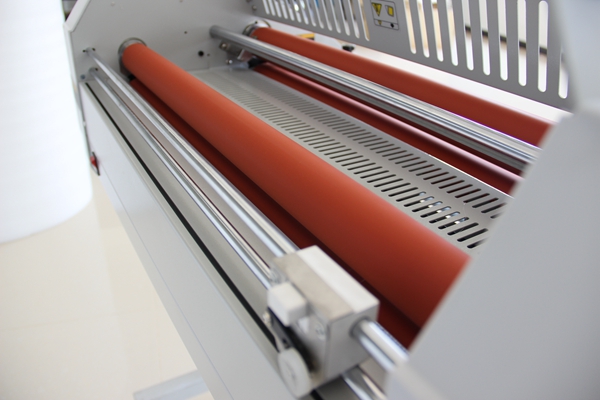

Advanced drum heating technology, heating efficiency is higher

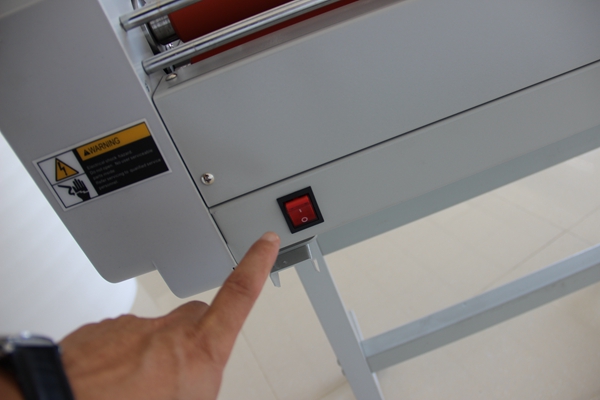

Multiple security protection design. people-oriented

Price: $ 620

Quantity:
Availability:





Buy Now Add to Cart

Product Advantage

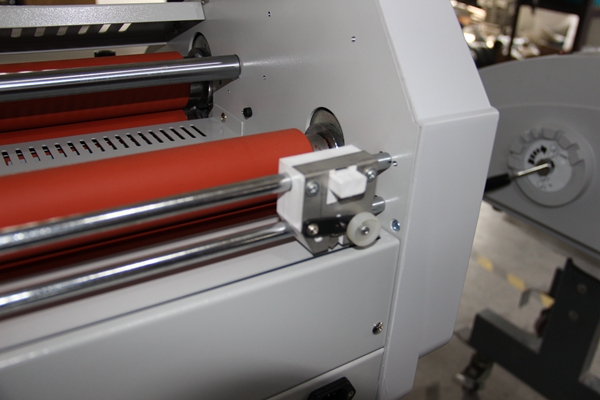

The point blade directly marks the dotted line on the film, which is convenient for breaking the film as soon as it is torn, without the aid of tools

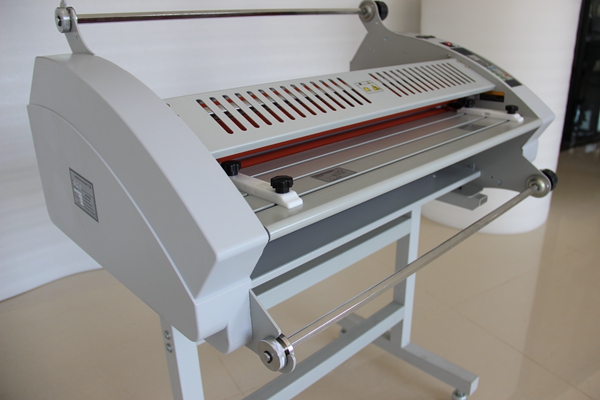

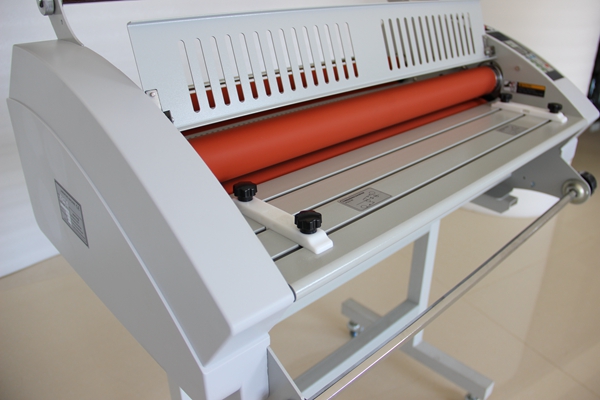

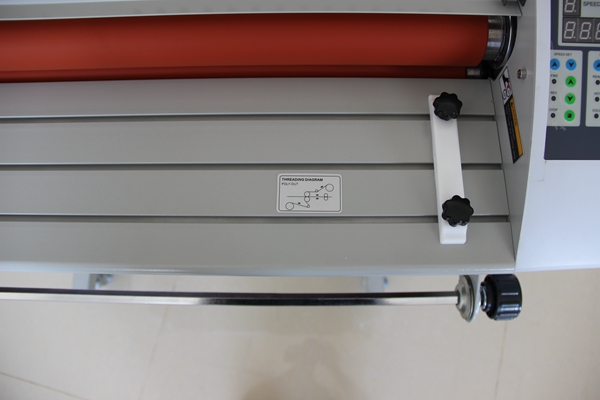

Lengthened feeding platform and receiving platform, suitable for a variety of different types of coating needs
Automatic film cutting, patented design, stable performance
Front and rear roller separation pressure regulator can be adjusted according to paper thickness
Infrared induction temperature control, liquid crystal display, coating speed can be adjusted

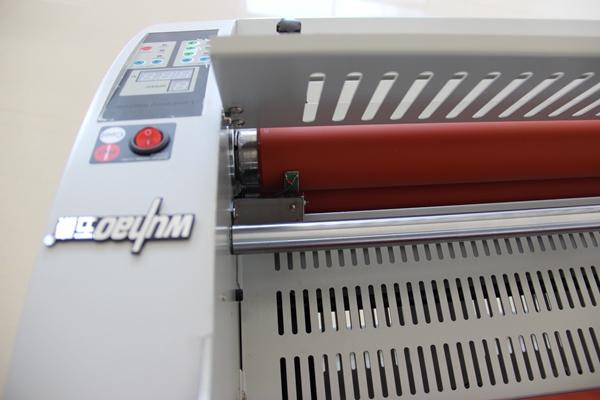

Heating roller protective cover design, prevent foreign objects, safety guarantee

Technical Parameters

FM650
Laminating machine

SPEED ADJUSTABLE
DOUBLE SIDE LAMINATING
MANUAL FEEDING PAPER

Max.lamination width: 630mm
Max.lamination speed: 3000mm/min
Max. lamination temperature: 180C
Max. clearance between top bottom rollers: 5mm
Recommended film: 25-250mic
Warm up time: about 10 minute
Single-sided laminating function: YES
Double-sided laminating function: YES
Hot laminating: YES
Cold laminating: YES
With a perforating blade: NO
Auto feeding paper: NO
Heating rollerdia: 54MM
Pull roller dia: 45MM
Electric: AC220,110V/50, 60HZ, 700W
Diameter of the core: 1,1.5,3 inch
Packing size: 990*510*500mm
GW: 75.5kgs
