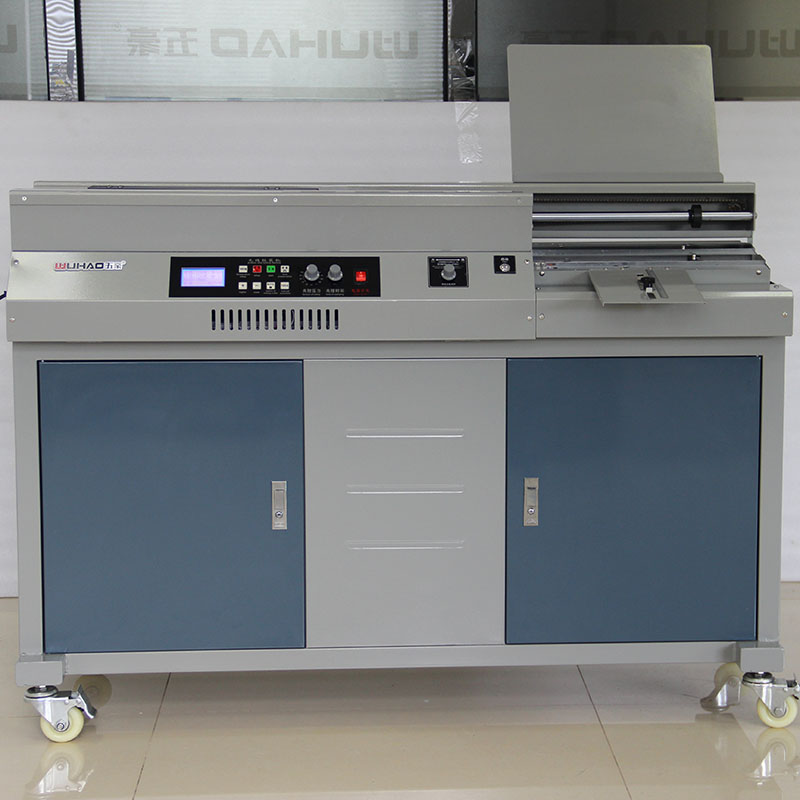

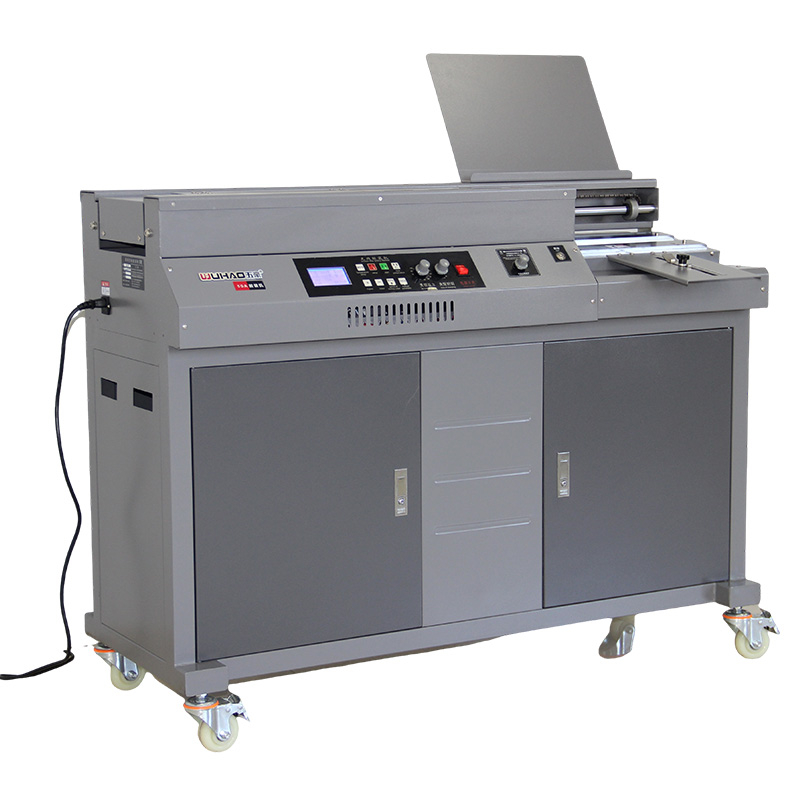

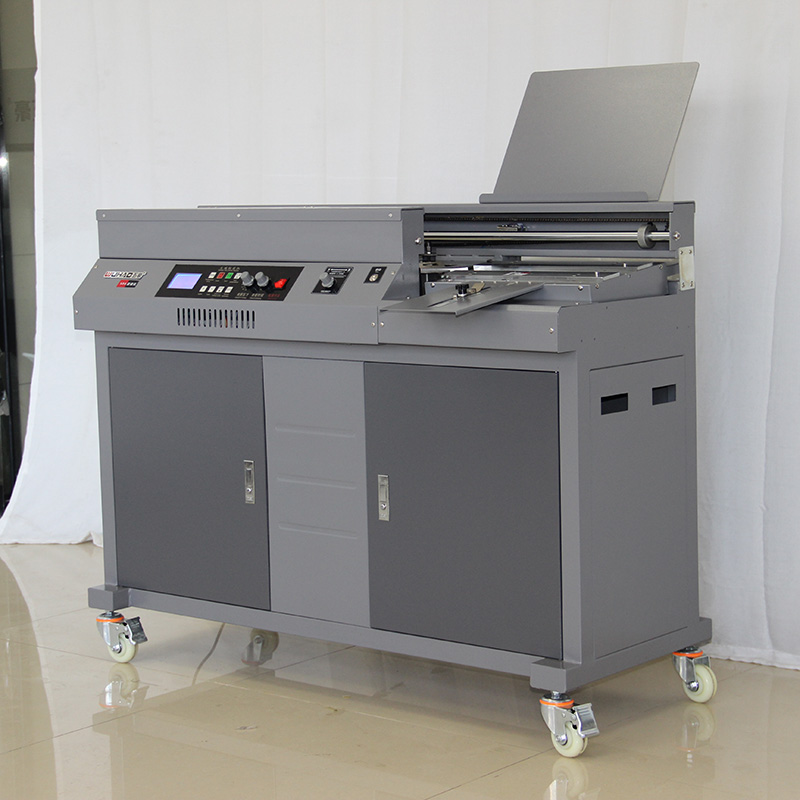

Wuhao-50A-50A+-50B-50B+-50R Adhesive Machine

EQ-50A-50A+-50B-50B+-50R Adhesive Machine

5 0 Reviews

Safe and stable low voltage intelligent computer board design
Aluminum alloy plastic box design

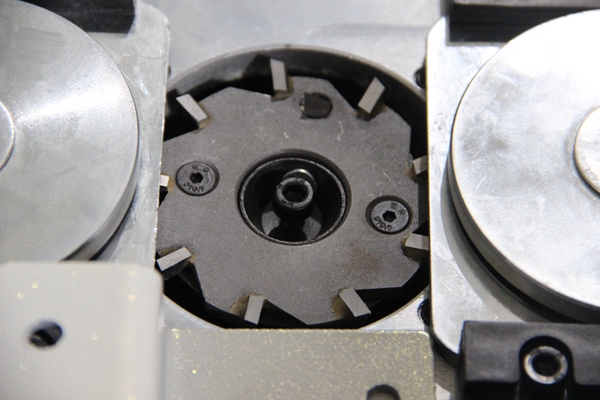

Sun knife + small milling cutter ensures stronger binding

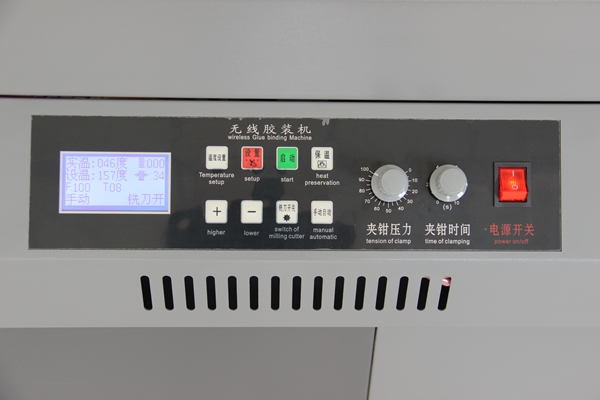

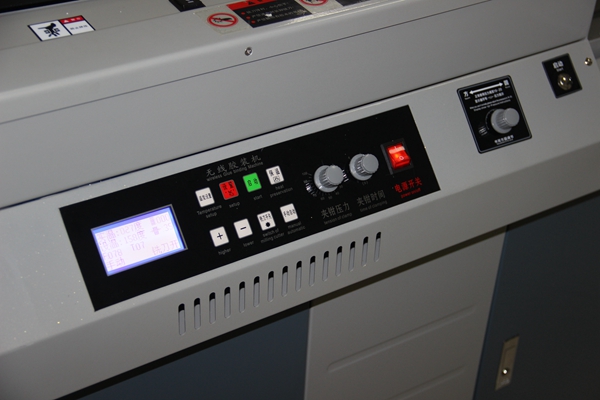

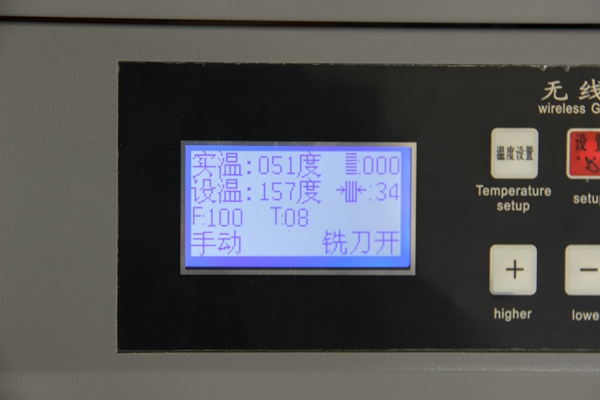

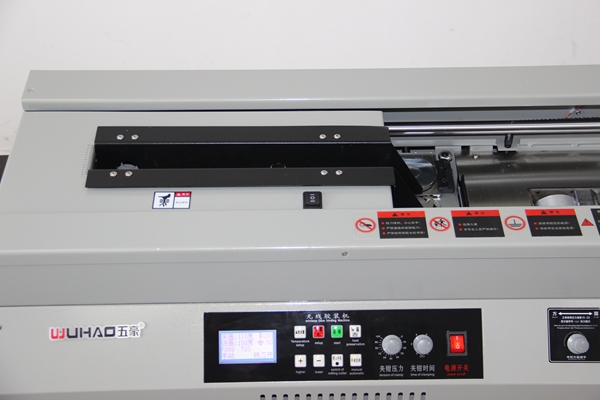

LCD liquid crystal display fault detection function
Double motor clamp table design

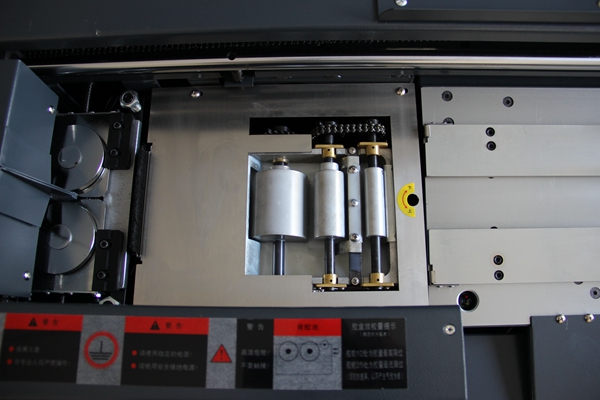

Three rubber wheel design only (E50A+50B+ models)

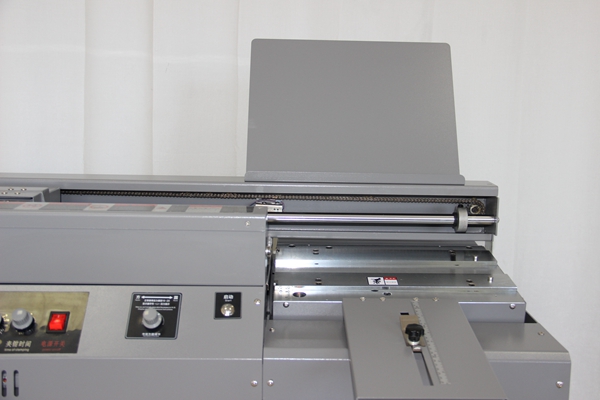

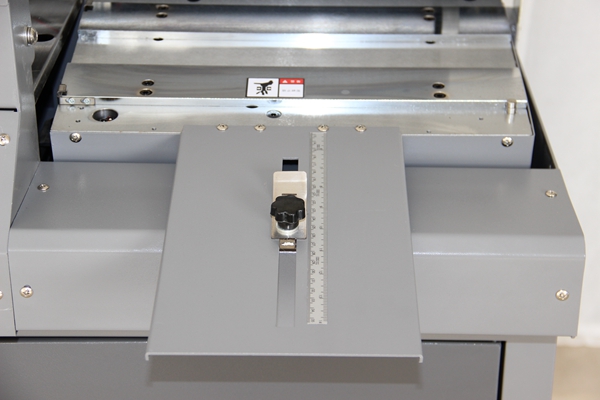

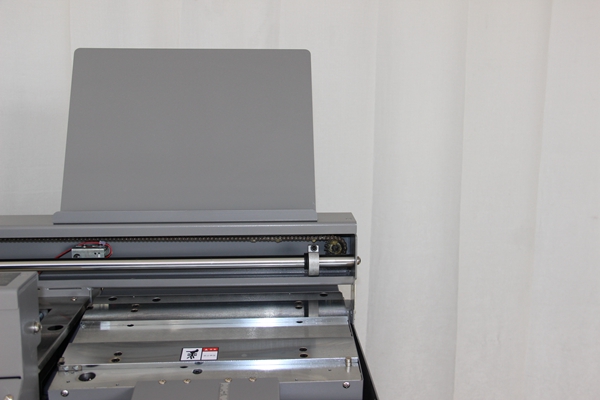

Binding cover bookstand linear double guide design
Electronically adjust the back and circumference of the book
Heavy structural design steel plate thickening

Price: $ 960

Quantity:
Availability:





Buy Now Add to Cart

Model:
50A-A4
Brand:
erqi

Product Advantage

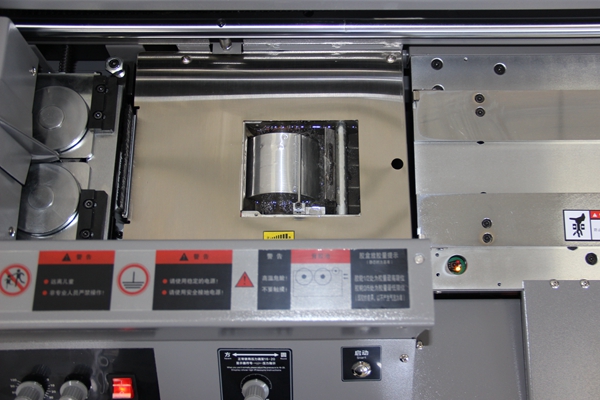

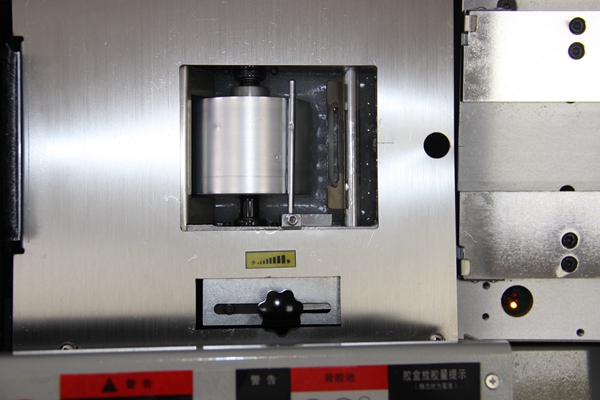

Side glue and back glue boxes. Large capacity aluminum glue tank ensures uniform adhesive application and adjustable glue thickness

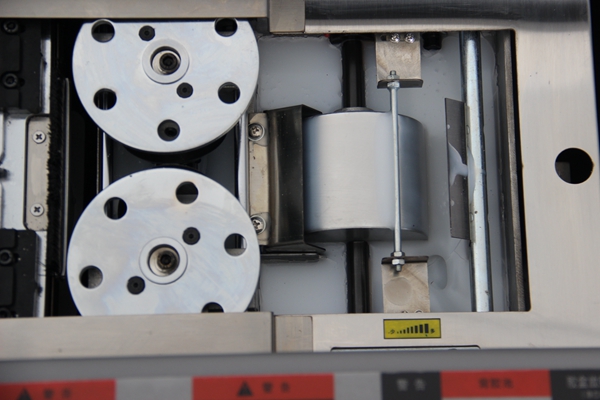

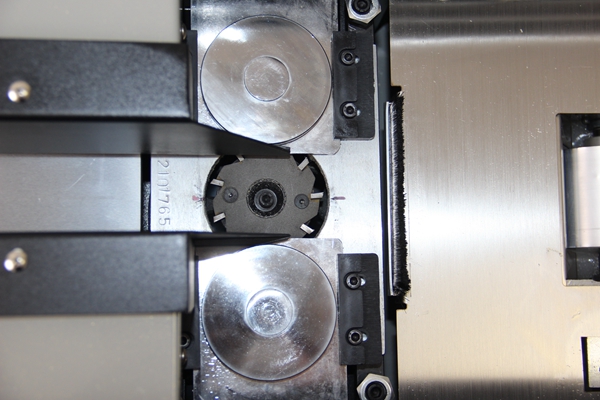

Sun knife + small milling cutter 2 combined gold knife milling back, milling cutter switch is adjustable

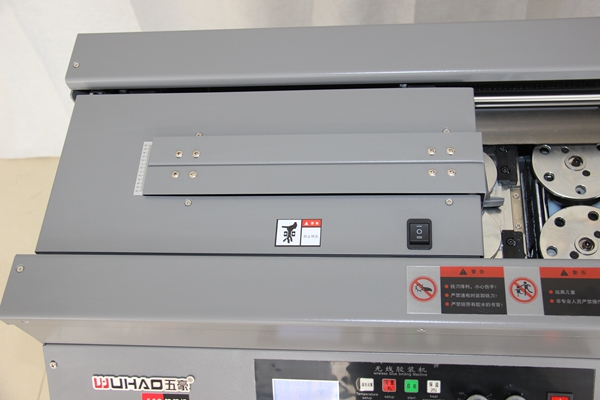

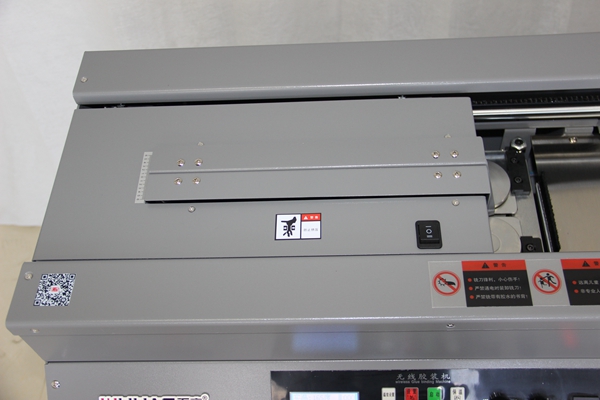

Open inclined clamping platform, easy to operate
Clamp and lift individual motor control
Clamp and lift individual motor control
Clamp and lift independent motor control

Technical Parameters

Model	Maximum binding thickness	Maximum binding length	Maximum Speed/Hour	Resin Pool Device	Package Dimensions	Gross Weight
50A	50mm	380mm	250/h	Single rubber wheel	1290x530x960mm	170kg
50A+	50mm	380mm	250/h	Triple rubber wheel	1290x550x960mm	175kg
50B	50mm	420mm	250/h	Single rubber wheel	1280x550x960mm	190kg
50B+	50mm	420mm	250/h	Triple rubber wheel	1280x550x960mm	190kg
50R	50mm	380mm	250/h	Single rubber wheel + side rubber	1280x540x1010mm	190kg
